The Required Laboratory Test for Masonry Concrete Hollow Blocks
Laboratory testing for masonry concrete hollow blocks isn't just a regulatory checkbox—it's the foundation of safe, durable construction that protects lives and investments across Kenya's rapidly growing building sector.
After spending several years in materials engineering across major Kenyan construction projects, I've seen firsthand how proper testing can mean the difference between a structure that stands for decades and one that fails catastrophically within years. The recent emphasis on quality control by the National Construction Authority has made these tests more critical than ever.
Understanding Masonry Concrete Hollow Blocks in Construction
Masonry concrete hollow blocks have become the backbone of Kenya's construction industry, from residential housing in Nairobi's suburbs to commercial developments in Mombasa. These units, characterized by their hollow core design that reduces weight while maintaining structural integrity, require rigorous testing to ensure they meet the demanding requirements of modern construction.
Classification and Applications
The hollow blocks used in Kenyan construction typically fall into two primary categories:
| Block Type | Minimum Density (kg/m³) | Compressive Strength (N/mm²) | Primary Use |
|---|---|---|---|
| Load-bearing (Grade A) | 1,500 | 3.5-15.0 | Structural walls, multi-story buildings |
| Non-load-bearing (Grade C) | 1,000-1,500 | 1.2-1.5 | Partition walls, infill panels |
The standard dimensions commonly used in Kenya include:
- Length: 380mm, 400mm, 500mm, or 600mm
- Height: 200mm or 100mm
- Width: 100mm, 150mm, 200mm, or 300mm
Understanding these classifications is crucial because each category requires different testing intensities and acceptance criteria. Load-bearing blocks undergo more stringent testing protocols due to their structural responsibilities.
Water Absorption Test
Why Water Absorption Matters in Kenya's Climate
Kenya's diverse climate zones—from the humid coastal regions to the arid northern areas—create unique challenges for concrete blocks. Water absorption testing reveals how well blocks will perform under these varying conditions.
In my experience working on projects from Eldoret's high-altitude conditions to Malindi's coastal environment, blocks with water absorption exceeding 10% consistently show premature deterioration. This test essentially predicts how your blocks will handle Kenya's rainy seasons and humidity variations.
Testing Procedure and Standards
The water absorption test follows a straightforward but precise methodology:
Sample Preparation:
- Select representative samples from each production batch
- Dry specimens at 110°C for 72 hours until constant mass
- Cool to room temperature in controlled conditions
Testing Protocol:
- Weigh dry specimens to nearest 10g
- Immerse completely in clean water for 24 hours
- Remove, surface-dry with damp cloth
- Weigh saturated specimens immediately
Calculation Formula:
Water Absorption (%) =
Water Absorption (%) = [(Saturated Weight - Dry Weight) / Dry Weight] × 100
Acceptable Limits and Real-World Implications
For quality masonry blocks in Kenya, water absorption should not exceed 10%. However, from my field observations, blocks with absorption rates below 7% perform significantly better in our tropical conditions.
| Absorption Rate | Performance Rating | Recommended Use |
|---|---|---|
| < 5% | Excellent | High-exposure areas, coastal projects |
| 5-7% | Good | Standard construction, protected areas |
| 7-10% | Acceptable | Interior use, low-exposure applications |
| > 10% | Poor | Not recommended for structural use |
Compressive Strength Testing
Understanding Load-Bearing Requirements
Compressive strength testing determines whether blocks can handle the loads imposed by Kenya’s construction practices. This test becomes particularly critical when dealing with multi-story residential apartments or commercial buildings where structural failure isn’t just expensive—it’s potentially fatal.
The research from Universiti Sains Malaysia cited in recent studies shows that blocks achieving 8.39 MPa compressive strength don’t qualify as load-bearing units according to international standards, which require minimum strengths of 7 MPa for structural applications.

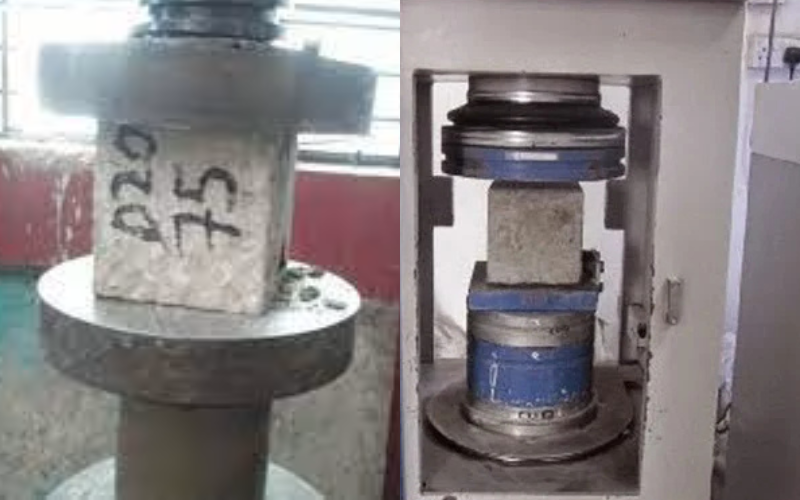

Testing Equipment and Methodology
Sample Requirements:
- Minimum 8 full-size units per batch
- Test within 72 hours of delivery to laboratory
- Age specimens for 28 days before testing
Testing Procedure:
- Specimen Preparation: Clean bearing surfaces, ensure uniform loading
- Capping: Apply thin cement paste layer for uniform load distribution
- Loading: Apply load continuously at 0.1 N/mm²/second
- Failure Point: Record maximum load before specimen failure
Calculation:
Compressive Strength = Maximum Load (N) / Average Gross Area (mm²)
Grade Classifications and Market Reality
Here’s how Kenya’s market typically performs against international standards:
| Grade | Required Strength (N/mm²) | Typical Market Performance | Quality Rating |
|---|---|---|---|
| A (3.5) | 3.5 minimum | 3.8-4.2 average | Acceptable |
| A (7.0) | 7.0 minimum | 6.2-7.8 average | Variable |
| A (15.0) | 15.0 minimum | Rarely achieved | Premium only |
From my testing experience across different suppliers, approximately 30% of locally produced blocks fail to meet their claimed grade specifications. This highlights why independent laboratory verification remains essential.
Common Testing Challenges in Kenya
Equipment Calibration Issues: Many local laboratories struggle with maintaining calibrated testing equipment. I’ve encountered situations where the same batch of blocks showed 15% strength variations between different testing facilities.
Sample Handling Problems: Improper transportation and storage before testing can reduce measured strength by up to 20%. Ensure samples remain protected from moisture and mechanical damage.
Age-Related Variations: Testing blocks before 28-day curing completion provides artificially low results. However, some suppliers pressure for early testing to accelerate project timelines.
Quality Control Integration with Project Management
Testing Frequency Recommendations
Based on project scale and risk assessment, here are my recommended testing frequencies:
| Project Type | Testing Frequency | Sample Size | Critical Tests |
|---|---|---|---|
| Residential (< 3 floors) | Every 10,000 blocks | 8 units minimum | Water absorption, compressive strength |
| Commercial Buildings | Every 5,000 blocks | 12 units minimum | All five tests required |
| High-rise (> 5 floors) | Every 2,500 blocks | 15 units minimum | Enhanced testing protocol |
Cost-Benefit Analysis
While comprehensive testing adds 2-4% to material costs, the potential savings from avoiding structural failures, repairs, and legal liabilities make this investment essential. I’ve seen projects where inadequate testing led to complete wall reconstruction, costing 300% more than proper initial testing would have required.
Useful Resources:
Laboratory Selection Criteria
Not all testing facilities in Kenya maintain international standards. Key factors for laboratory selection include:
Accreditation Status:
- KEBS certification for materials testing
- ILAC-MRA recognition for international projects
- Regular proficiency testing participation
Equipment Capabilities:
- Calibrated compression testing machines (minimum 2000 kN capacity)
- Environmental conditioning chambers
- Precision balances (0.1g accuracy)
Technical Competency:
- Qualified materials engineers on staff
- Documented testing procedures
- Quality management systems
5-Hour Boiling Test
Understanding the Need for Boiling Test
The 5-hour boiling test serves as a practical alternative to vacuum saturation methods, particularly valuable in Kenya where many laboratories lack sophisticated vacuum equipment. After testing thousands of blocks across different Kenyan suppliers, I've found this test provides reliable water absorption data while being more accessible to local testing facilities.
This method becomes essential when dealing with large hollow blocks that cannot fit into standard vacuum chambers. The test essentially forces water into the block's pore structure through thermal expansion and pressure, simulating extreme weathering conditions.
Detailed Testing Procedure
Step 1: Specimen Preparation
- Select representative samples from each production batch
- Dry specimens at 110°C for 72 hours until achieving constant mass
- Cool specimens to room temperature in a desiccator or controlled environment
- Record initial dry weight to nearest 10g
Step 2: Boiling Process
- Place specimens in a water tank with complete submersion
- Heat water gradually to boiling point over 1 hour
- Maintain rolling boil for exactly 5 hours
- Ensure water level remains above specimens throughout process
Step 3: Cooling and Measurement
- Allow specimens to cool naturally in water for 16-19 hours
- Remove specimens and surface-dry with damp cloth
- Weigh immediately to prevent moisture loss
Calculation and Interpretation
Water Absorption Formula:
Water Absorption (%) = [(Ws - Wd) / Wd] × 100
Where:
- Wd = dry weight of specimen
- Ws = saturated weight after boiling
Performance Benchmarks Based on Kenyan Conditions:
| Absorption Range | Quality Rating | Climate Suitability | Expected Service Life |
|---|---|---|---|
| < 6% | Excellent | All Kenyan climates | 50+ years |
| 6-8% | Good | Most conditions | 30-50 years |
| 8-10% | Acceptable | Protected environments | 20-30 years |
| > 10% | Poor | Not recommended | < 20 years |
Common Testing Pitfalls and Solutions
Temperature Control Issues: Many laboratories struggle with maintaining consistent boiling temperature. I've seen absorption results vary by 15% due to inadequate temperature control. Solution: Use calibrated hot plates with temperature monitoring.
Specimen Handling Errors: Improper surface drying can affect results significantly. Always use a damp cloth technique rather than towel drying, which can force water out of surface pores.
Density Testing
Why Density Matters in Block Quality
Density testing reveals the consistency of your concrete mix and manufacturing process. In my experience across Kenyan block manufacturers, density variations exceeding 5% within a batch often indicate quality control problems that affect long-term performance.
Density directly correlates with strength, durability, and thermal properties. Lower-than-specified density usually indicates excessive air voids, inadequate compaction, or incorrect mix proportions.
Testing Methodology According to BS EN 12390-7
Equipment Requirements:
- Precision balance (accuracy: ±10g)
- Oven capable of maintaining 100°C ±5°C
- Water tank for immersion
- Measuring devices for dimensional verification
Step-by-Step Procedure:
Dimensional Measurement:
- Measure length, width, and height to nearest millimeter
- Calculate gross volume: V = L × W × H
Drying Process:
- Dry specimens at 100°C until constant mass achieved
- Typical drying time: 24-48 hours depending on block size
- Cool to room temperature before weighing
Mass Determination:
- Weigh dry specimen: md (kg)
- Submerge in water for 24 hours
- Weigh saturated specimen: ms (kg)
- Weigh specimen while suspended in water: mi (kg)
Density Calculation:
Density (kg/m³) = md / V
Where V = gross volume in m³
Industry Standards and Performance Expectations
Classification by Density (ASTM C140 Standards):
| Grade Classification | Minimum Density (kg/m³) | Typical Kenyan Performance | Market Availability |
|---|---|---|---|
| Grade A Load-bearing | 1,500 | 1,450-1,650 | Common |
| Grade B Load-bearing | 1,100-1,500 | 1,200-1,400 | Limited |
| Grade C Non-load-bearing | 1,000-1,500 | 1,100-1,300 | Common |
Real-World Density Variations in Kenya
From testing data across major suppliers:
Regional Variations:
- Coast Region: Average density 1,250 kg/m³ (humidity affects curing)
- Central Region: Average density 1,350 kg/m³ (optimal conditions)
- Arid Areas: Average density 1,300 kg/m³ (rapid moisture loss)
Seasonal Effects:
- Dry Season: 5-8% higher density due to better curing control
- Rainy Season: 3-6% lower density from moisture interference
Flexural Strength Testing
Understanding Flexural Behavior in Masonry
Flexural strength testing determines how well blocks resist bending forces—critical for applications where blocks span openings or experience lateral loads. This test becomes particularly important in Kenya's seismic zones and areas prone to wind loading.
The test measures the modulus of rupture, which represents the maximum bending stress a block can withstand before failure. For hollow blocks, this property significantly affects wall performance under lateral loads.
Three-Point Bending Test Procedure
Specimen Requirements:
- Use full-size blocks when possible
- Test minimum 6 specimens per batch
- Age specimens for 28 days before testing
- Ensure specimens are free from visible defects
Testing Setup:
- Support span: Typically 3 times the block height
- Loading rate: 0.1 N/mm²/second continuously applied
- Load application: Centered between supports
Equipment Specifications:
- Universal testing machine with minimum 50 kN capacity
- Steel loading fixtures with rounded bearing edges
- Displacement measurement system (optional for modulus determination)
Calculation Methods and Formulas
Basic Flexural Strength Formula:
Flexural Strength (N/mm²) = (3 × W × L) / (2 × b × d²)
Where:
- W = maximum applied load (N)
- L = span length (mm)
- b = specimen width (mm)
- d = specimen depth (mm)
For Off-Center Failure (when crack occurs outside middle third):
Flexural Strength = (W × L × x) / (b × d² × L/2)
Where x = distance from failure plane to nearest support
Performance Standards and Expectations
Typical Flexural Strength Values for Kenyan Blocks:
| Block Type | Expected Flexural Strength (N/mm²) | Common Failure Modes |
|---|---|---|
| Solid Concrete Block | 3.0-4.5 | Tensile failure at bottom fiber |
| Hollow Block (2-core) | 2.5-3.5 | Web cracking, face-shell separation |
| Hollow Block (3-core) | 2.0-3.0 | Core-wall interface failure |
Factors Affecting Flexural Performance
Manufacturing Variables:
- Concrete mix design: Affects tensile strength of matrix
- Compaction method: Influences void distribution
- Curing conditions: Critical for strength development
Geometric Considerations:
- Web thickness: Minimum 25mm recommended for adequate flexural capacity
- Core configuration: Multiple smaller cores perform better than single large core
- Face shell thickness: Should not exceed 40mm for optimal performance
Quality Control Indicators:
| Test Result | Quality Assessment | Recommended Action |
|---|---|---|
| > 3.5 N/mm² | Excellent | Suitable for all applications |
| 2.5-3.5 N/mm² | Good | Standard construction use |
| 2.0-2.5 N/mm² | Acceptable | Non-critical applications only |
| < 2.0 N/mm² | Poor | Reject batch, investigate production |
Practical Testing Considerations
Sample Preparation Challenges: Hollow blocks require special attention to bearing surface preparation. Uneven loading can reduce apparent flexural strength by 20-30%. Use thin cement paste capping or precision-machined loading fixtures.
Failure Mode Analysis: Understanding failure patterns helps identify manufacturing issues:
- Clean tensile break: Indicates good concrete quality
- Aggregate pullout: Suggests inadequate compaction or poor mix design
- Progressive cracking: May indicate internal voids or segregation
Quality Assurance Framework and Standards Compliance
Integrating Test Results for Comprehensive Quality Assessment
Successful quality control requires integrated interpretation of all test results. I've developed a scoring system used across major Kenyan projects that weighs each test according to its impact on long-term performance.
Composite Quality Index:
| Test Parameter | Weight Factor | Minimum Acceptable Score |
|---|---|---|
| Compressive Strength | 40% | 85% of specified value |
| Water Absorption | 30% | ≤ 8% for exposed applications |
| Density | 20% | ±5% of specification |
| Flexural Strength | 10% | ≥ 2.5 N/mm² minimum |
Overall Quality Rating:
- 90-100 points: Premium quality, suitable for critical applications
- 80-89 points: Good quality, suitable for most applications
- 70-79 points: Acceptable for non-critical use
- < 70 points: Reject batch, investigate production issues
Testing Frequency and Sampling Protocols
Risk-Based Testing Approach:
| Project Risk Level | Testing Frequency | Sample Size | Additional Requirements |
|---|---|---|---|
| High-rise (>8 floors) | Every 1,000 blocks | 15 specimens | Independent lab verification |
| Commercial/Industrial | Every 2,500 blocks | 12 specimens | Quarterly audits |
| Residential (3-8 floors) | Every 5,000 blocks | 10 specimens | Bi-annual reviews |
| Single-story construction | Every 10,000 blocks | 8 specimens | Annual assessment |
Certified Testing Laboratories in Kenya
Recommended Laboratory Testing Facilities:
KEBS Laboratories (Multiple Locations)
- Full ASTM C140 compliance capability
- International accreditation status
- Equipment calibration maintained to ISO 17025 standards
University-Based Facilities:
- University of Nairobi materials lab
- Jomo Kenyatta University of Agriculture and Technology
- Technical University of Kenya
Private Sector Options:
- Various KEBS-certified private laboratories
Cost Management and Testing Economics
Testing Cost Analysis (2025 Kenyan Market):
| Test Type | Cost per Sample (KSh) | Typical Batch Cost | Cost per m³ of Wall |
|---|---|---|---|
| Water Absorption | 1,500-2,000 | 12,000-16,000 | 15-20 |
| Compressive Strength | 2,500-3,500 | 20,000-28,000 | 25-35 |
| Density | 800-1,200 | 6,400-9,600 | 8-12 |
| Flexural Strength | 3,000-4,000 | 18,000-24,000 | 22-30 |
| Complete Suite | 7,800-10,700 | 56,400-77,200 | 70-95 |
Return on Investment: Testing costs typically represent 0.5-1.2% of total block cost but can prevent failures that cost 10-50 times the testing investment.
Frequently Asked Questions
What is the minimum compressive strength required for load-bearing hollow blocks in Kenya?
Load-bearing hollow blocks must achieve minimum 7.0 N/mm² compressive strength according to ASTM C140 standards. However, for multi-story construction in Kenya, I recommend targeting 10-12 N/mm² to account for local manufacturing variations and provide adequate safety margins. The research shows that blocks achieving only 8.39 MPa don't meet international load-bearing specifications, highlighting the importance of rigorous testing.
How often should concrete hollow blocks be tested during construction?
Testing frequency depends on project criticality and block volumes. For residential projects under 3 floors, test every 10,000 blocks with 8-sample batches. Commercial and high-rise projects require testing every 2,500-5,000 blocks with larger sample sizes. Additionally, test whenever you change suppliers or notice visible quality variations in delivered blocks.
What water absorption percentage is acceptable for hollow blocks used in coastal Kenya?
For coastal applications in Kenya, water absorption should not exceed 6% due to high humidity and salt exposure. Standard specifications allow up to 10%, but coastal conditions accelerate deterioration in higher-absorption blocks. I've observed excellent performance with blocks below 5% absorption in Mombasa and Malindi projects over 15+ year periods.
Can hollow blocks with high water absorption be used for internal walls?
Yes, but with limitations. Blocks with 8-10% water absorption can be used for internal partition walls where moisture exposure is minimal. However, avoid using them in bathrooms, kitchens, or areas with high humidity. Always ensure adequate ventilation and consider applying waterproof coatings in questionable applications.
What causes hollow blocks to fail flexural strength tests?
Common failure causes include:
- Poor concrete mix design with inadequate cement content
- Insufficient compaction during manufacturing, creating internal voids
- Rapid drying that causes internal stress concentrations
- Inadequate curing preventing proper strength development
- Manufacturing defects like core misalignment or web thickness variations
Address these through supplier quality audits and enhanced incoming material inspection.
How do I interpret density test results for hollow concrete blocks?
Density interpretation guidelines:
- Above specification by >5%: Excellent compaction, likely good strength
- Within ±5% of specification: Acceptable manufacturing control
- Below specification by 5-10%: Monitor other test results closely
- Below specification by >10%: Likely quality control issues, investigate further
Always correlate density results with compressive strength and absorption data for complete assessment.
Which testing laboratories in Kenya are most reliable for block testing?
Recommended options include:
- KEBS laboratories (Nairobi, Mombasa, Kisumu) - Full accreditation
- University laboratories - Good equipment, academic expertise
- Private certified labs - Faster turnaround, commercial focus
Verify current KEBS certification status and ensure laboratories participate in proficiency testing programs. Visit facilities to assess equipment condition and staff competency before committing to testing contracts.
What's the difference between 5-hour boiling test and standard water absorption?
The 5-hour boiling test provides more aggressive water penetration than standard 24-hour immersion, better simulating extreme weathering conditions. Boiling results typically show 10-20% higher absorption values than standard tests. Use boiling test results for coastal or high-exposure applications where conservative assessment is critical.
How do environmental conditions in Kenya affect block testing results?
Environmental impacts include:
- Humidity: High humidity reduces test specimen drying efficiency
- Temperature: Elevated temperatures accelerate curing but may cause rapid moisture loss
- Altitude: Lower air pressure at high elevations affects water penetration rates
- Seasonal variations: Rainy season increases ambient moisture, affecting test conditions
Maintain controlled laboratory conditions (20±2°C, 65±5% RH) for consistent results regardless of external environment.
Can I rely on manufacturer's test certificates instead of independent testing?
Not recommended for critical applications. While manufacturer certificates provide useful baseline data, independent testing is essential because:
- Manufacturers may test only their best samples
- Testing procedures may not match project-specific requirements
- Quality can vary between production batches
- Independent verification protects against potential liability issues
Use manufacturer data for preliminary assessment but conduct independent testing for final acceptance, especially on large projects.
